PROJECT MODULAR CONSOLE 32
LOOPTROTTER PROJECT CONSOLE 32 is a perfect solution for all studios, producers and engineers who already use 500 series modules in their creative environment. The console is fully customizable and compatible with almost every 500 series module currently available on the market.

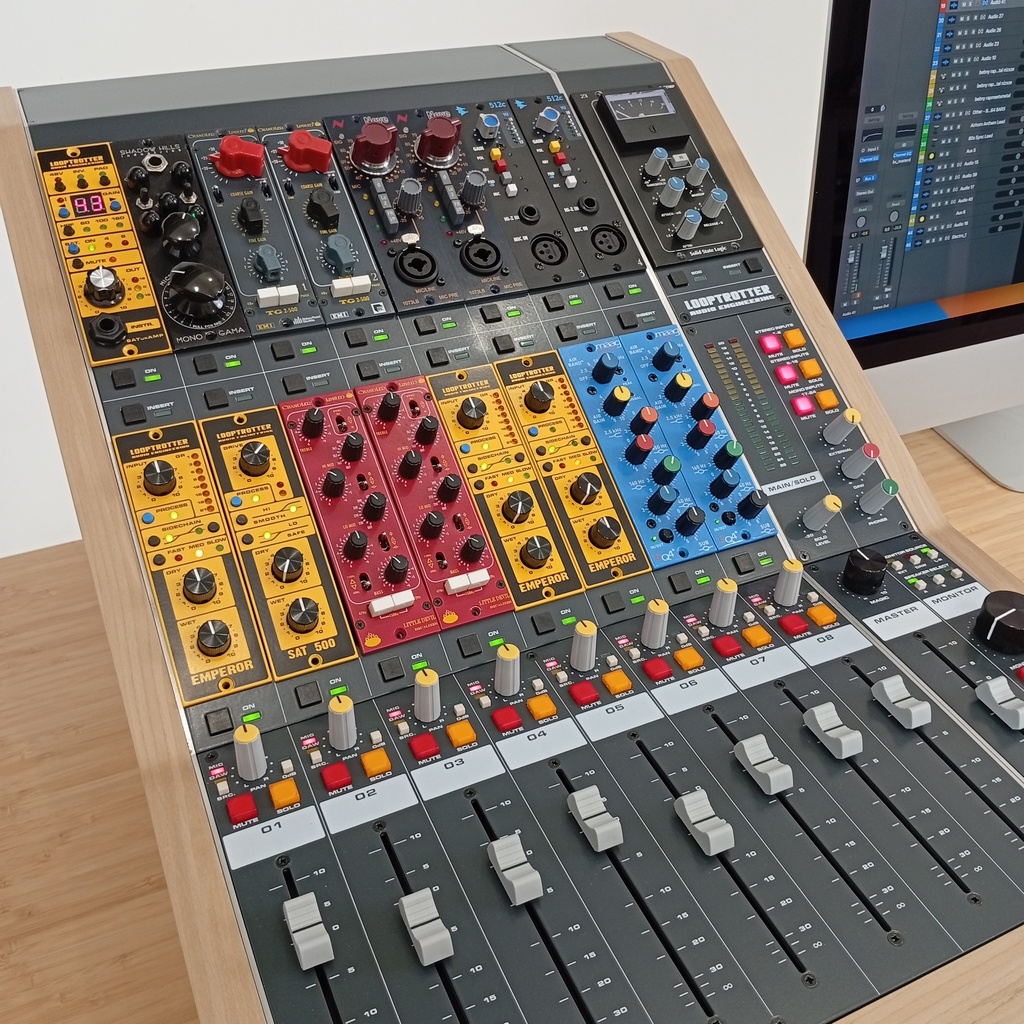

The Project Console 32 has no built-in preamplifiers or equalisers. Instead, there are two 500-series slots in each channel in which any preamplifiers, equalisers or other devices can be installed. On each channel it is possible to achieve any sound you want, which can be modified at any time by simply swapping 500-series modules.

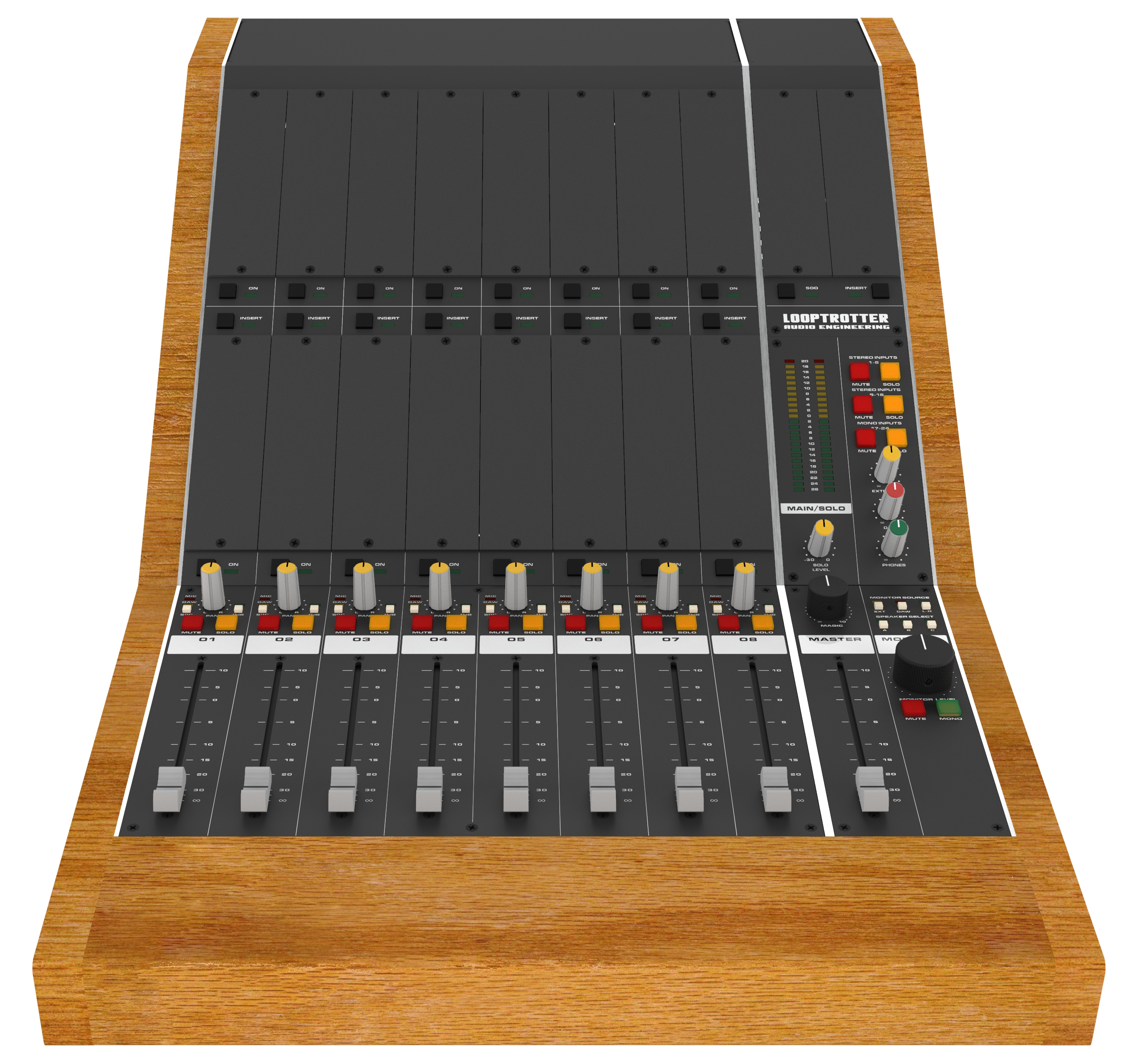

8 CHANNEL MODULE
Channel Module Features:
- Eight switchable inputs with two selectable channel modes: MIC (Record Mode) and DAW (Mix Mode)
- Eight MIC/LINE INPUT channels (DB-25)
- Eight DAW INPUT channels (DB-25)
- Two 500-series slots per channel with true bypass
- Balanced insert per channel (DB-25)
- Direct TO TAPE output on each of the eight channels (DB-25)
- Adjustable L/R pan control
- 0dB fader bypass switch for each channel
- 100mm Alps fader per channel
- Channel MUTE switch
- Channel SOLO switch
- 100% analog signal path
- Handcrafted PCB designs
- Operates as a standalone frame (no 500-series modules required)
MASTER MODULE
Master Module Features:
- 24 summing channels: 16 stereo and 8 mono inputs (DB-25)
- Original summing circuit combining current and voltage summing stages
- Main L-R summing bus with 100mm Alps master fader
- MAGIC circuit on the summing bus with level control
- Stereo 500-series slot on the summing bus
- Balanced insert on the summing bus
- Fully-featured monitor section
- Three switchable monitor outputs: A, B, C
- Four selectable monitor sources: EXTERNAL, DAW, L-R, SOLO
- Adjustable EXTERNAL input (¼” TRS)
- Adjustable DAW input
- Dedicated SOLO summing bus
- SOLO level control (-30dB to 0dB)
- Large monitor volume knob
- Monitor MUTE switch
- Monitor MONO switch
- Stereo headphone output with volume control
- 24-segment LED meter
- Integrated hybrid power supply (switching/linear)
CONNECTIONS
Rear Panel Connections:
- Monitor A/B/C – balanced output (XLR)
- Balanced Eternal Input (¼” TRS)
- Balanced Main Output (DB-25)
- Balanced Insert Send (DB-25)
- Balanced Insert Return (DB-25)
- Balanced DAW Input (DB-25)
- Balanced Stereo Inputs 1-8 (DB-25)
- Balanced Stereo Inputs 9-16 (DB-25)
- Balanced Mono Inputs 17-24 (DB-25)
- Balanced MIC / LINE Input (DB-25)
- Balanced DAW Input (DB-25)
- Balanced TAPE OUTPUT (Direct Output) (DB-25)
- Balanced Insert Send (DB-25)
- Balanced Insert Return (DB-25)

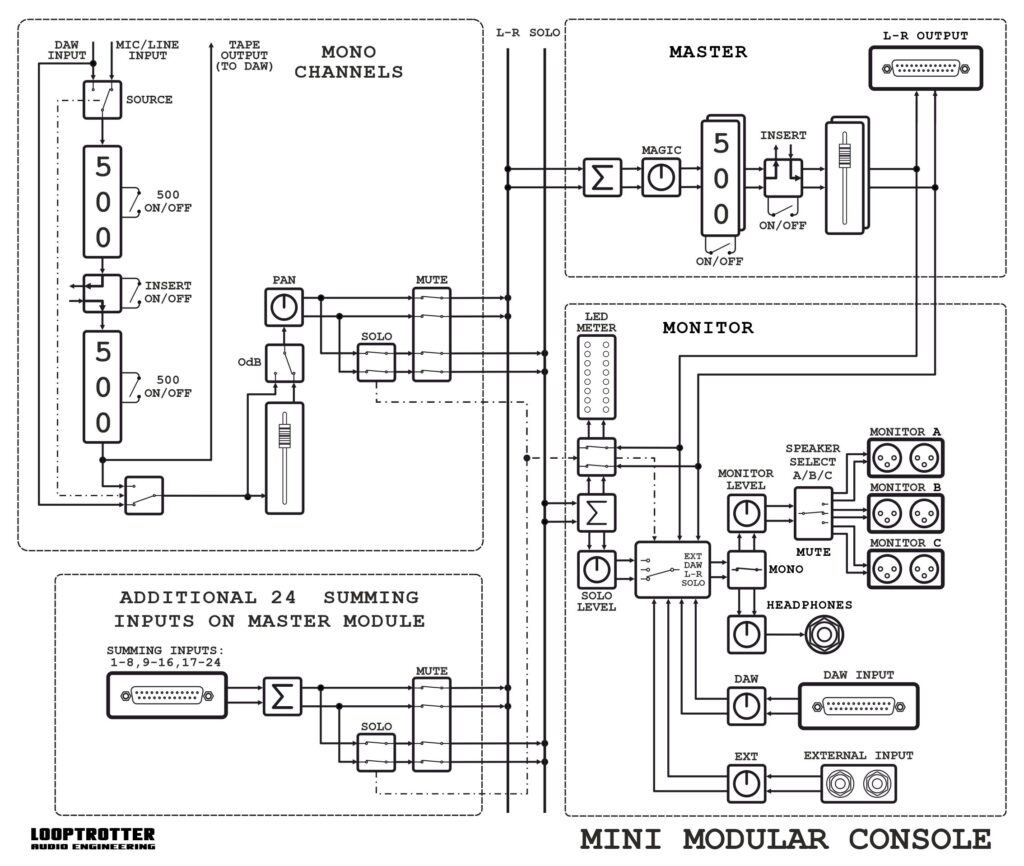

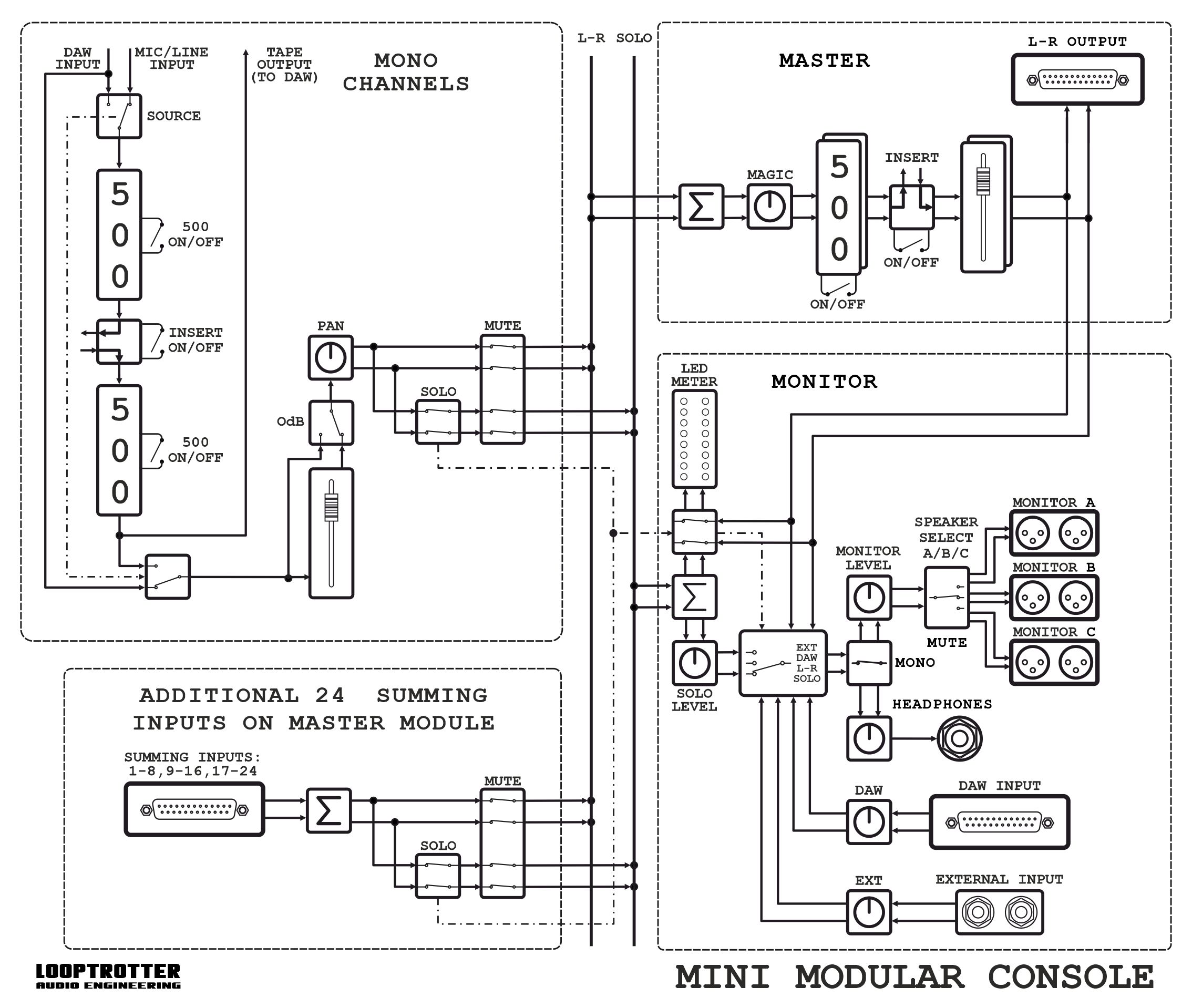

SIMPLIFIED BLOCK DIAGRAM
